Direct drive servo motor
Electric automatic thread trimmer (option, pneumatic automatic thread trimmer)
Max speed 7000 rpm
LED light
Working well for light to medium material

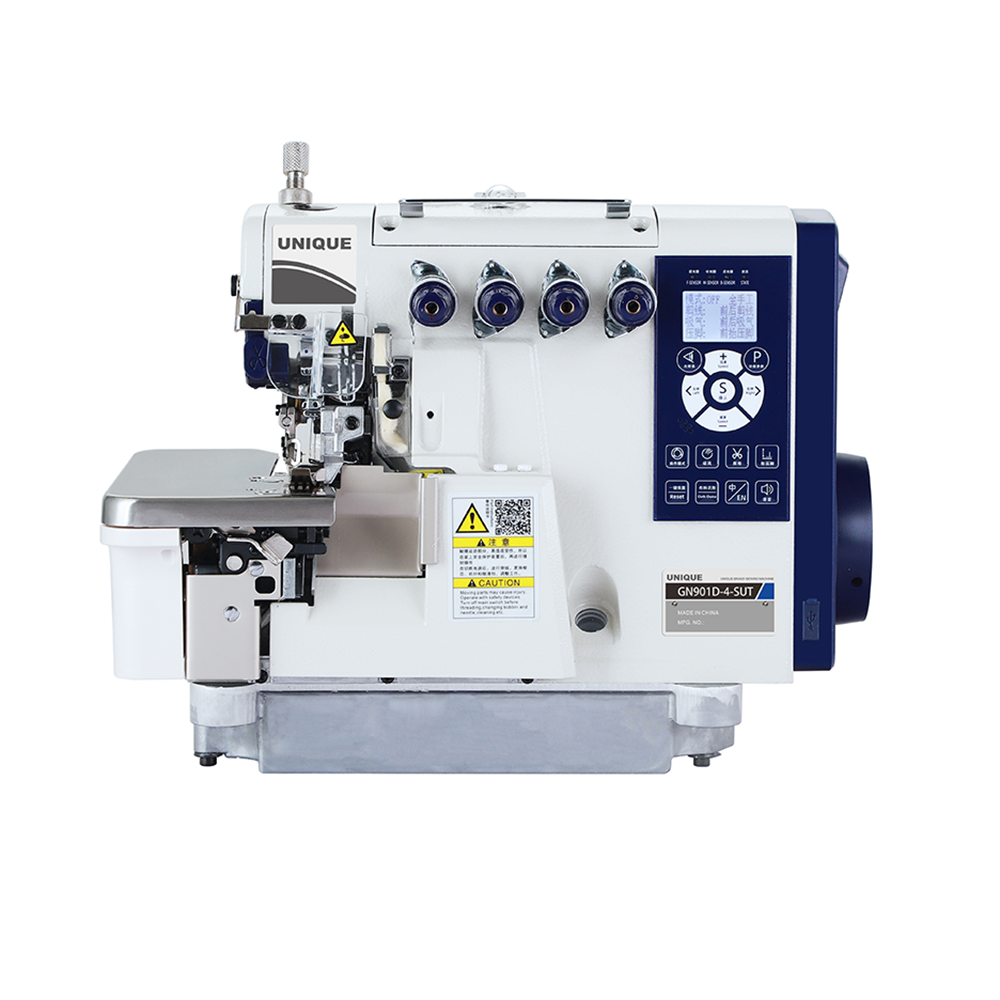

| Model | GN901D-3-SUT | GN901D-4-SUT | GN901D-5-SUT |
| Thread number | 3 | 4 | 5 |
| Overlock width | 5mm | 4+2=6mm | Type 38: 5+3mm as standard Type 70: 5+5mm Type 86: 6+5mm |
| Needle type | DCX27 11-14# | ||
| Max. speed | 7000 sti/min | ||
| Max. stitch length | 4.5 mm | ||
| Differential ratio | 1:0.7-1:2.0 | ||
| Presser foot lift | 5.5mm | ||
| Power | 550W | ||
| Power supply | AC 220V, 50/60Hz or 110V, 60Hz | ||
| G/N weight & volume | 35/30kgs,480*355*540mm=0.09cbm | ||
| Complete set | With stand & table 63kgs, 0.177cbm | ||
