Latest design
Direct drive servo motor
Automatic needle positioning

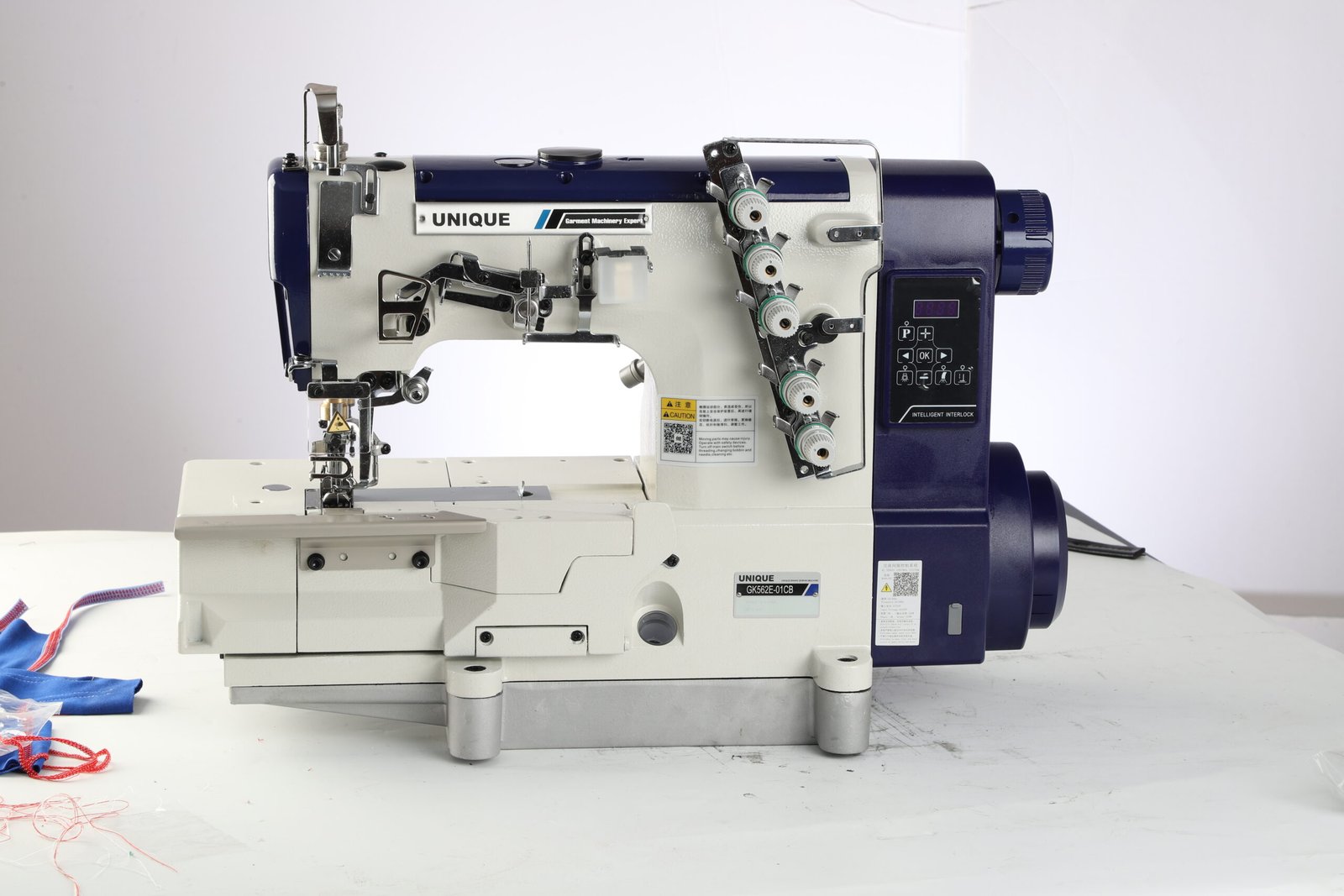

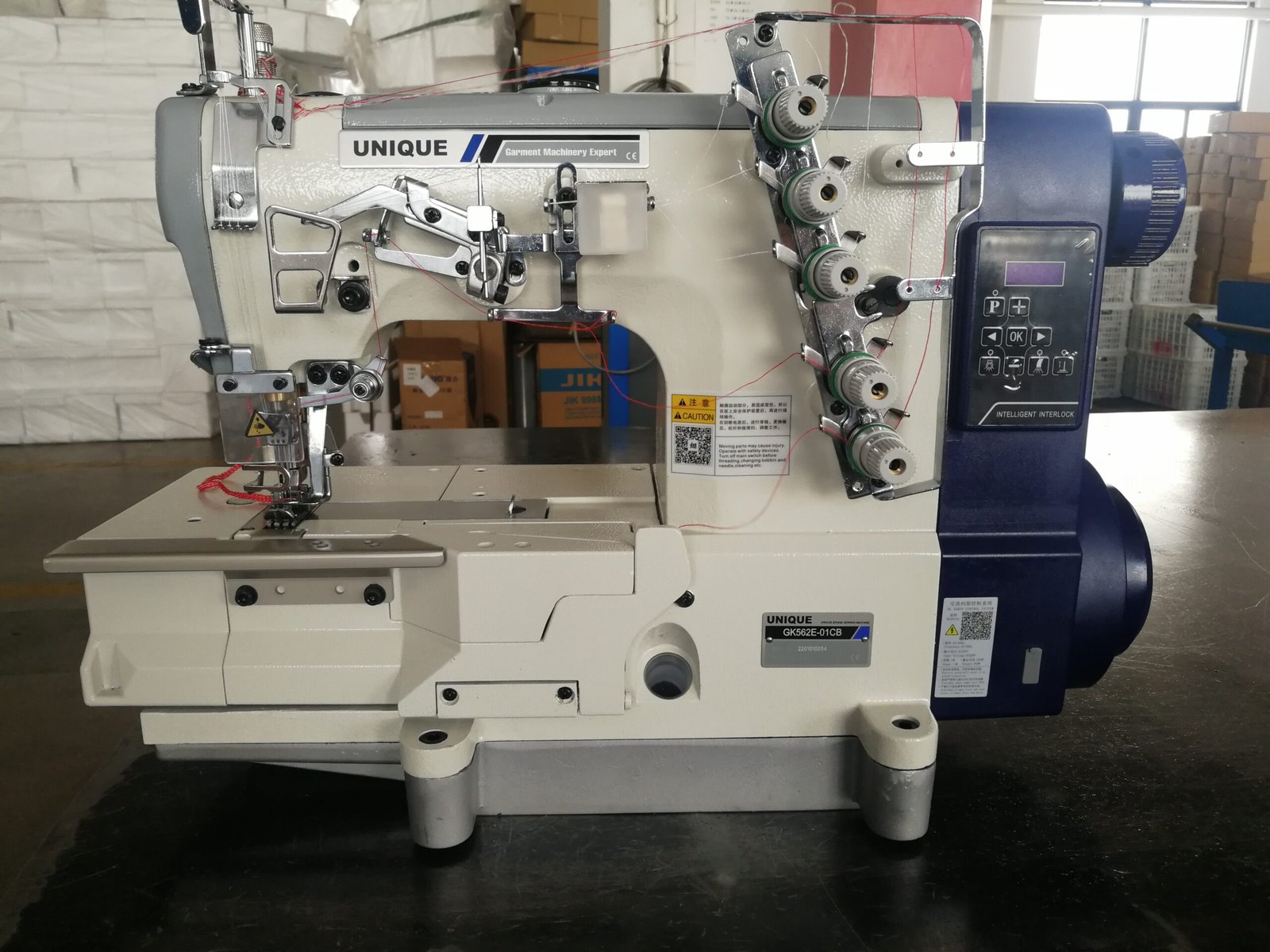

| Model | GK562E-01CB |
| Application | Light to medium heavy material |
| Max. speed | 5,500sti/min |
| Number of needles | 3 (can remove 1 to use as 2 needles) |
| Number of threads | 5 (4 threads when 2 needles) |
| Gauge option for 3 needles | 4.8 5.6 6.4mm |
| Gauge option for 2 needles | 2.4 3.2 4.0 4.8 5.6mm |
| Lubrication | Automatic |
| Needle type | UY128GAS 9-14# |
| Max. stitch length | 4.4mm |
| Lift of the presser foot | 6.3mm |
| Power | 550W |
| G/N weight & volume | 53/50kgs, 670*465*660mm=0.21cbm |
| Complete set | With stand & table 81kgs, 0.29cbm |
