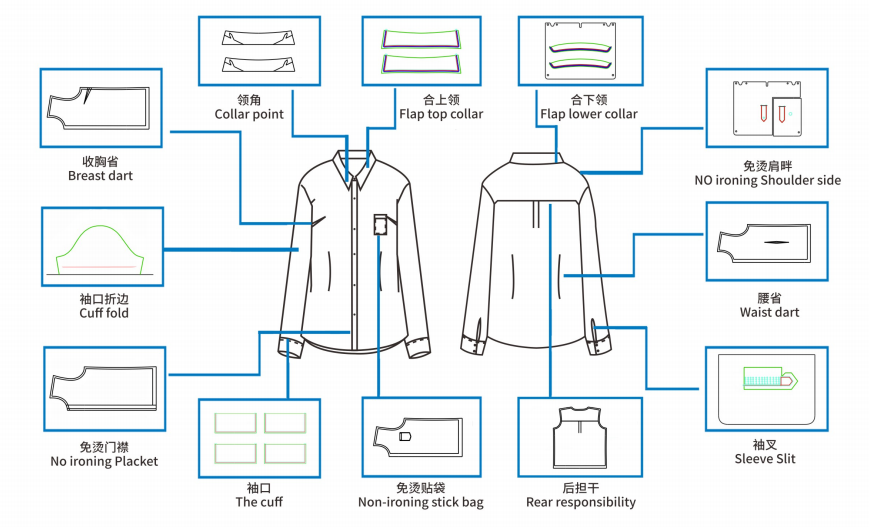

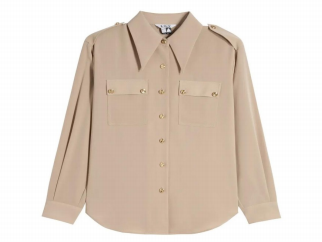

Shirt process breakdown diagram

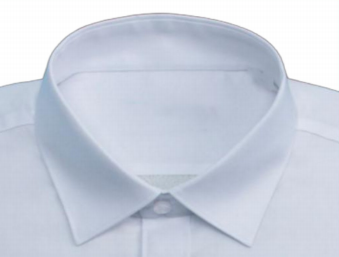

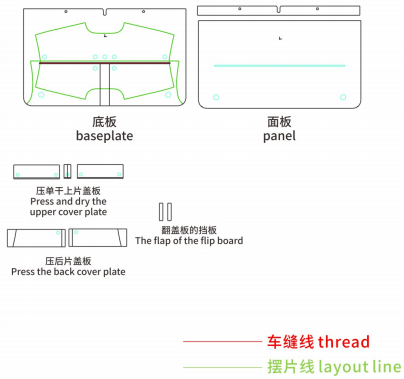

Shirt superior collar
Lockstitch machine sewing time: 16 seconds/piece Template machine sewing time: 8seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. The left and right collar angles are the same 3. Even cloth margin

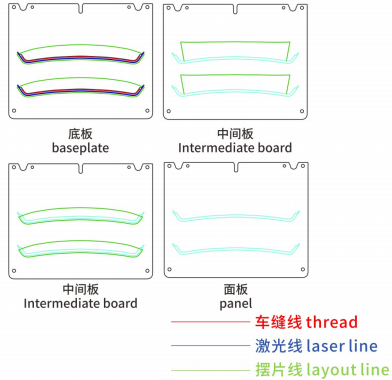

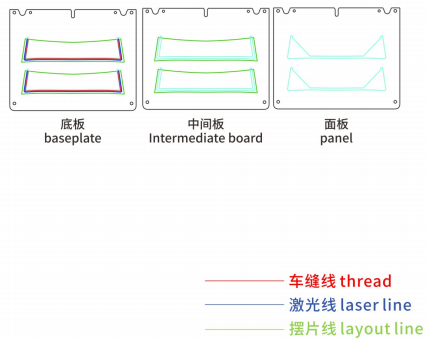

Shirt underneath collar
Lockstitch machine sewing time: 30 seconds/piece Template machine sewing time: 7seconds/piece Recommended model: NT8310ASeries-13085-D Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. The left and right collar angles are the same 3. The lower collar has the same arc

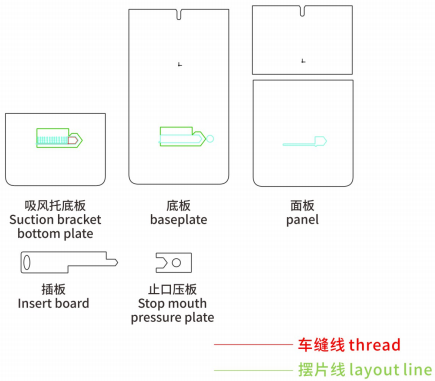

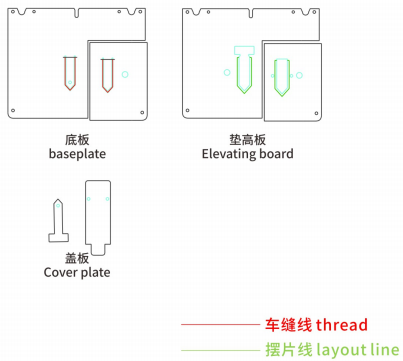

Shirt sleeve fork
Lockstitch machine sewing time: 16 seconds/piece Template machine sewing time: 8seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. The stitches are flat and consistent 3. Even cloth margin

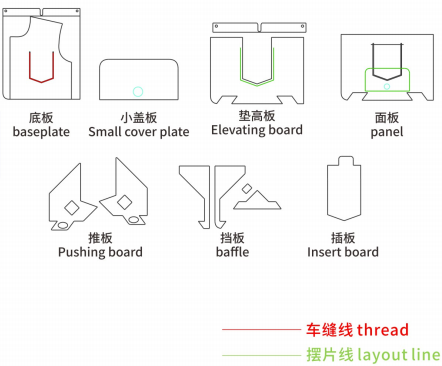

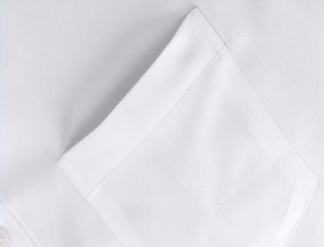

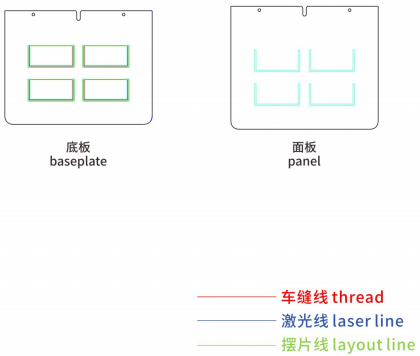

Shirt no-iron patch pocket
Lockstitch machine sewing time: 60 seconds/piece Template machine sewing time: 15 seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. The stitches are flat and consistent 3. Eliminate pocket points

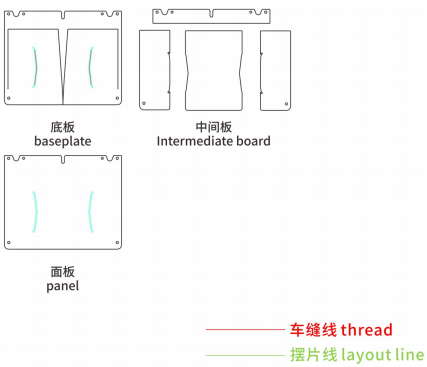

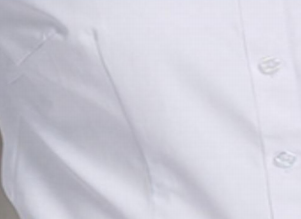

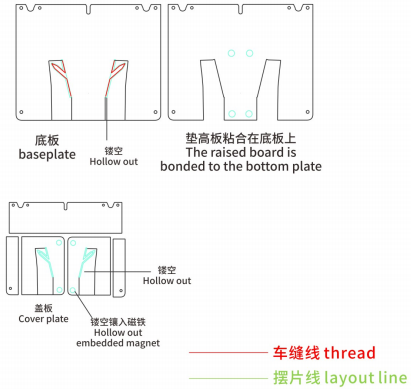

Waist dart of the shirt
Lockstitch machine sewing time: 10 seconds/piece Template machine sewing time: 4 seconds/piece Recommended model: NT8310ASeries-13085-D Optional function: Laster function Cutter function
Template advantages 1. Reduce positioning time 2. The left and right widths are the same 3. Eliminate pocket points

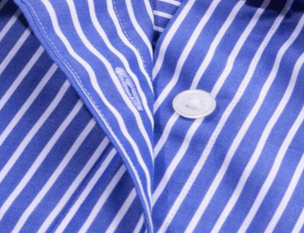

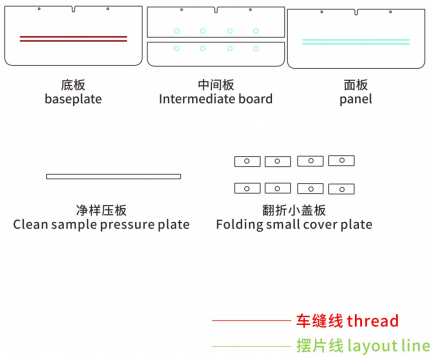

Shirt non ironing placket
Lockstitch machine sewing time: 20 seconds/piece Template machine sewing time: 7 seconds/piece Recommended model: NT8310ASeries-13085-D Optional function: Laster function Cutter function
Template advantages 1. Reduce manual ironing 2. The margins are consistent 3. The width of the placket is the same

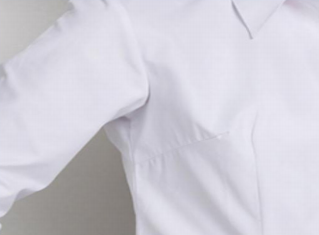

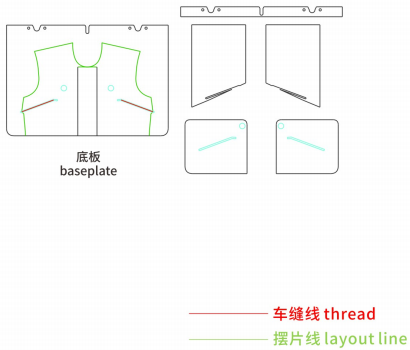

Breast dart of the shirt
Lockstitch machine sewing time: 10 seconds/piece Template machine sewing time: 4 seconds/piece Recommended model: NT8310ASeries-13085-D Optional function: Laster function Cutter function
Template advantages 1. Reduce positioning time 2. The left and right width are the same 3. Reduce uneven dimples
Ironless shoulder strap
Lockstitch machine sewing time: 13 seconds/piece Template machine sewing time: 6 seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. The stitches are flat and consistent 3. Even cloth margin

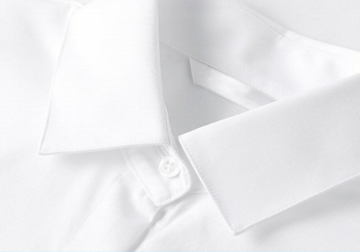

Shirt collar tip
Lockstitch machine sewing time: 20 seconds/piece Template machine sewing time: 10 seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. The stitches are flat and consistent 3. Even cloth margin

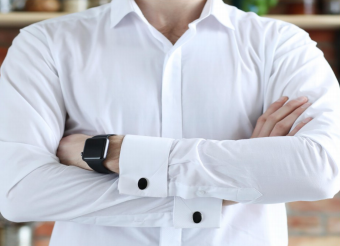

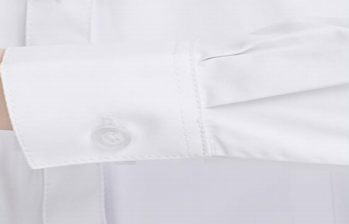

Shirt sleeve cuff
Lockstitch machine sewing time: 13 seconds/piece Template machine sewing time: 6 seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce drawing time 2. Beautiful stitches 3. The sewing edge is uniform

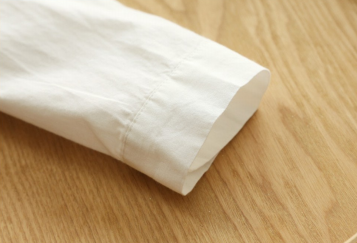

Sleeve cuff hem
Lockstitch machine sewing time: 15 seconds/piece Template machine sewing time: 7 seconds/piece Recommended model: NT8110ASeries-8045 Optional function: Laster function Cutter function
Template advantages 1. Reduce ironing time 2. Beautiful stitches 3. The cuff widths is the same
Shirt pleated stitching on the back york
Lockstitch machine sewing time: 30 seconds/piece Template machine sewing time: 7 seconds/piece Recommended model: NT8310ASeries-13085-D Optional function: Laster function Cutter function
Template advantages 1. Reduce positioning time 2. The pleat width is consistent 3. Reduce drawing time
